MDA series
MDA460-1/2-1M-15
Order code: 0460300642 · Dynisco- Accuracy: ± 1.00% FSO
- Process connection: 1/2-20UNF
- Pressure range: 0-1000 bar

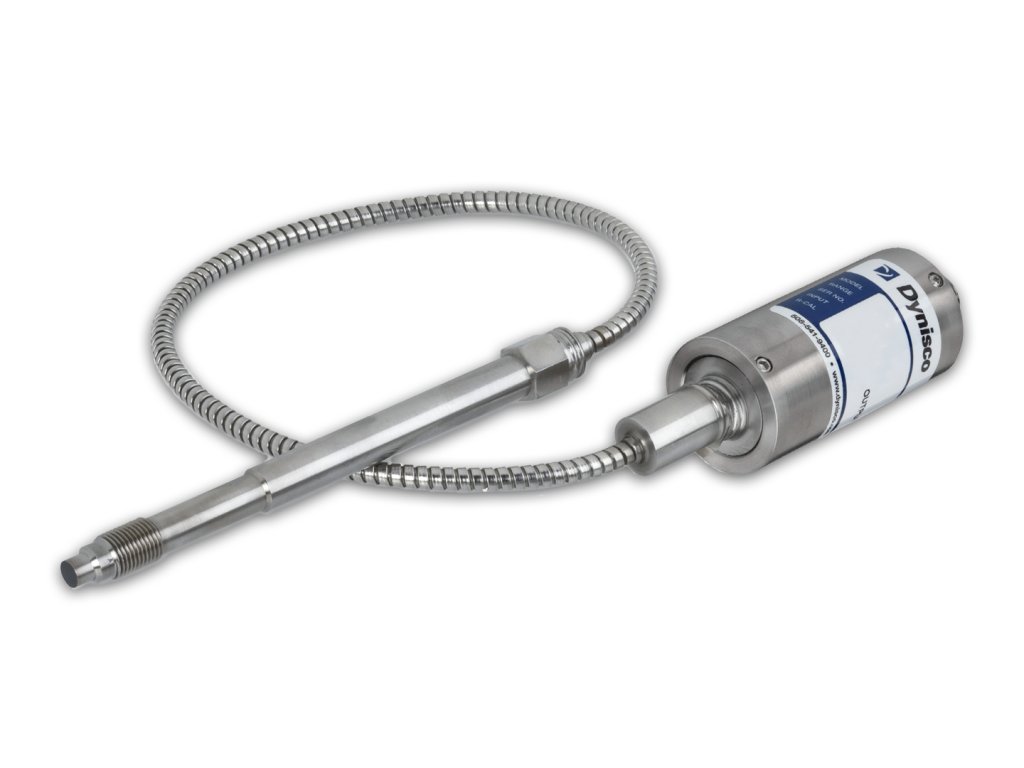

MDA465XL-1/2-1M
MDA465XL-1/2-1M (order code 04650300642) – melt pressure sensor by Dynisco, MDA series. Main parameters: accuracy ± 1.00% FSO, process connection 1/2-20UNF, pressure range 0-1000 bar, rigid stem length 15 cm, options Version with thicker Inconel 718 diaphragm, thickness 0.15 mm.
We will send you the price, delivery time and any available variants in our quotation.
Need help choosing? Call us on +420 571 647 228 or write to info@azurr-tech.cz.
Parameters
| Accuracy | ± 1.00% FSO |
|---|---|
| Process connection | 1/2-20UNF |
| Pressure range | 0-1000 bar |
| Rigid stem length | 15 cm |
| Flexible capillary length | No flexible capillary |
| Options | Version with thicker Inconel 718 diaphragm, thickness 0.15 mm |
| Output signal | 3.33mV/V |
