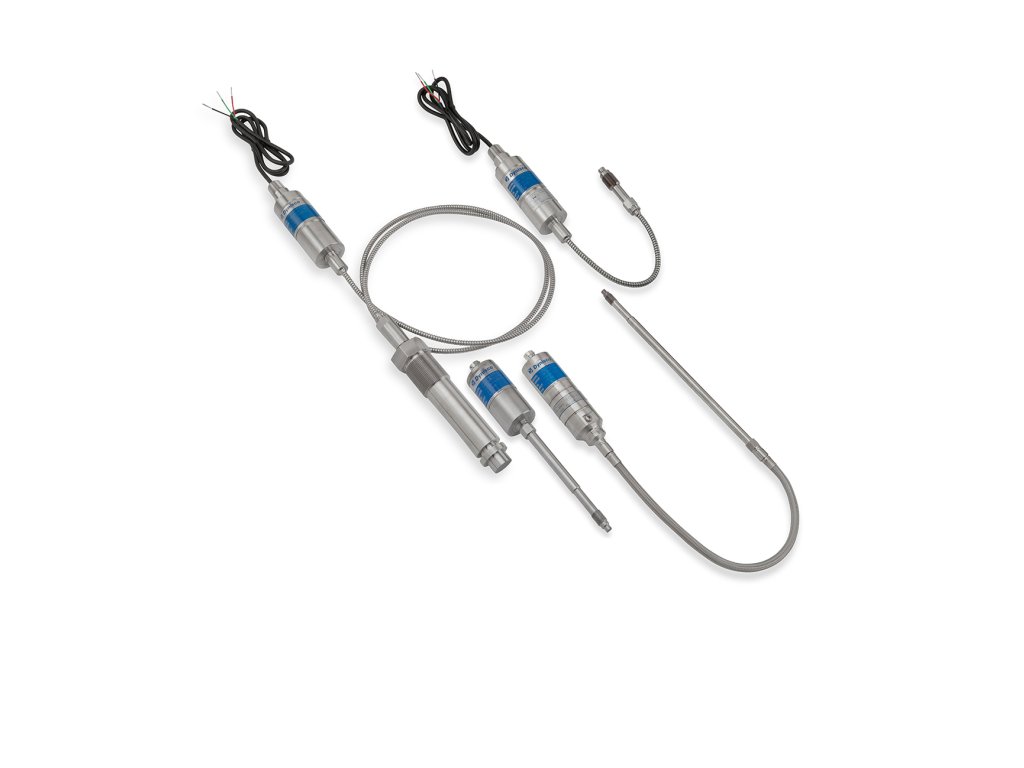

3242SA00B14CEDDCACZZ (order code 324200000039) – melt pressure sensor by Dynisco, SPX series. Main parameters: process connection 1/2-20UNF, transducer connector PT1H-10-6P connector, pressure range 35 Bar, rigid stem length 15 cm, flexible capillary length 46 cm.
The SPX-T (series 3) is an intelligent 4-20 mA pressure transmitter featuring temperature compensation and DynaLarity™, an innovation from Dynisco. The SPX-T transmitter offers the best specifications in this range. Temperature compensation is based on RTD measurement, which compensates for temperature changes, reducing temperature-related drift and increasing accuracy. There is no need to re-zero for temperature changes after installation. DynaLarity uses an advanced algorithm that linearizes shifts caused by process effects on the sensor. The combination of temperature compensation and DynaLarity reduces temperature drift by up to 80 % and improves accuracy by more than 60 % compared with other sensors. A process temperature output (RTD or 4-20mA) is available. HART communication is standard. SPX 3 series sensors are of all-welded construction designed for use in hazardous areas and are available with a range of different process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLCs, computers and similar high-level control equipment.
All sensors in this series can be configured to your needs. Contact us and we will be glad to help.
We will send you the price, delivery time and any available variants in our quotation.
Need help choosing? Call us on +420 571 647 228 or write to info@azurr-tech.cz.
| Process connection | 1/2-20UNF |
|---|---|
| Transducer connector | PT1H-10-6P connector |
| Pressure range | 35 Bar |
| Rigid stem length | 15 cm |
| Flexible capillary length | 46 cm |
| Engineering units | Bar |
| Digital communication | HART with zero and span adjustment |
| Diaphragm | DyMax Coated 15-5 PH SST |
| Approvals and certifications | Intrinsically Safe / ATEX |
The SPX-T model offers the best specifications in this range. These amplified transmitters eliminate the need for external signal conditioning. All models can be connected directly to distributed control systems, PLCs, computers and similar high-level control equipment.
The SPX-T series includes models SPX3242, SPX3243, SPX3342, SPX3343, SPX3290, SPX3291, SPX3390 and SPX3391.
SPX3242 Series
The SPX-T (series 3) is an intelligent 4-20 mA pressure transmitter featuring temperature compensation and DynaLarity™, an innovation from Dynisco. The SPX-T transmitter offers the best specifications in this range. Temperature compensation is based on RTD measurement, which compensates for temperature changes, reducing temperature-related drift and increasing accuracy. There is no need to re-zero for temperature changes after installation. DynaLarity uses an advanced algorithm that linearizes shifts caused by process effects on the sensor. The combination of temperature compensation and DynaLarity reduces temperature drift by up to 80 % and improves accuracy by more than 60 % compared with other sensors. A process temperature output (RTD or 4-20mA) is available. HART communication is standard. SPX 3 series sensors are of all-welded construction designed for use in hazardous areas and are available with a range of different process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLCs, computers and similar high-level control equipment.
