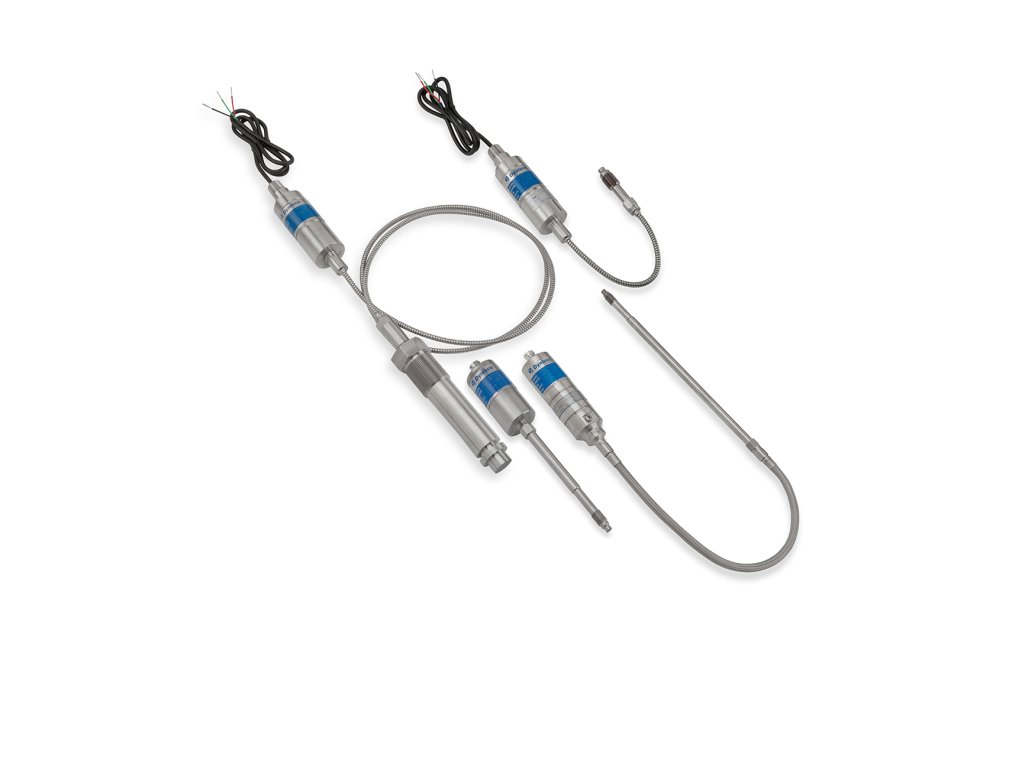

2242SA00B20CEDDCCAAA (order code 224200003217) – melt pressure sensor by Dynisco, SPX series. Main parameters: process connection 1/2-20UNF, pressure range 200 Bar, rigid stem length 15 cm, flexible capillary length 46 cm, integrated temperature sensor Type J thermocouple with 7 cm flexible lead.
The Dynisco SPX 2-Series is an intelligent 4-20mA pressure transmitter designed for use in hazardous (explosive) areas and available with a variety of process and electrical connections. SPX 2 series transmitters are of all-welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can be connected directly to distributed control systems, PLCs, computers and similar high-level control equipment. Configurations with thermocouples or RTDs are optionally available for melt temperature measurement.
All sensors in this series can be configured to your needs. Contact us and we will be glad to help.
We will send you the price, delivery time and any available variants in our quotation.
Need help choosing? Call us on +420 571 647 228 or write to info@azurr-tech.cz.
| Process connection | 1/2-20UNF |
|---|---|
| Pressure range | 200 Bar |
| Rigid stem length | 15 cm |
| Flexible capillary length | 46 cm |
| Integrated temperature sensor | Type J thermocouple with 7 cm flexible lead |
| Engineering units | Bar |
| Diaphragm | DyMax Coated 15-5 PH SST |
A range of different process and electrical connections is available. The SPX 2 series is of all-welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can be connected directly to distributed control systems, PLCs, computers and similar high-level control equipment. Configurations with thermocouples or RTDs are optionally available for melt temperature measurement.
The SPX 2 series includes models 2241, 2242, 2243, 2244, 2290, 2291 and 2292.
SPX2242 Series
The Dynisco SPX 2-Series is a smart pressure transducer with a 4-20mA output signal.
They are designed for use in hazardous areas and are available with a variety of process and electrical connections. The SPX 2 series is of all-welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can be connected directly to distributed control systems, PLCs, computers and similar high-level control equipment. Configurations with thermocouples or RTDs are optionally available for melt temperature measurement.
