SPX series
2242NP05B13FEAACACZZB171
Order code: 224200002152 · Dynisco- Process connection: M18x1.5
- Pressure range: 17.5 Bar
- Rigid stem length: 32 cm
2242NP05B13FEAACACZZJ10

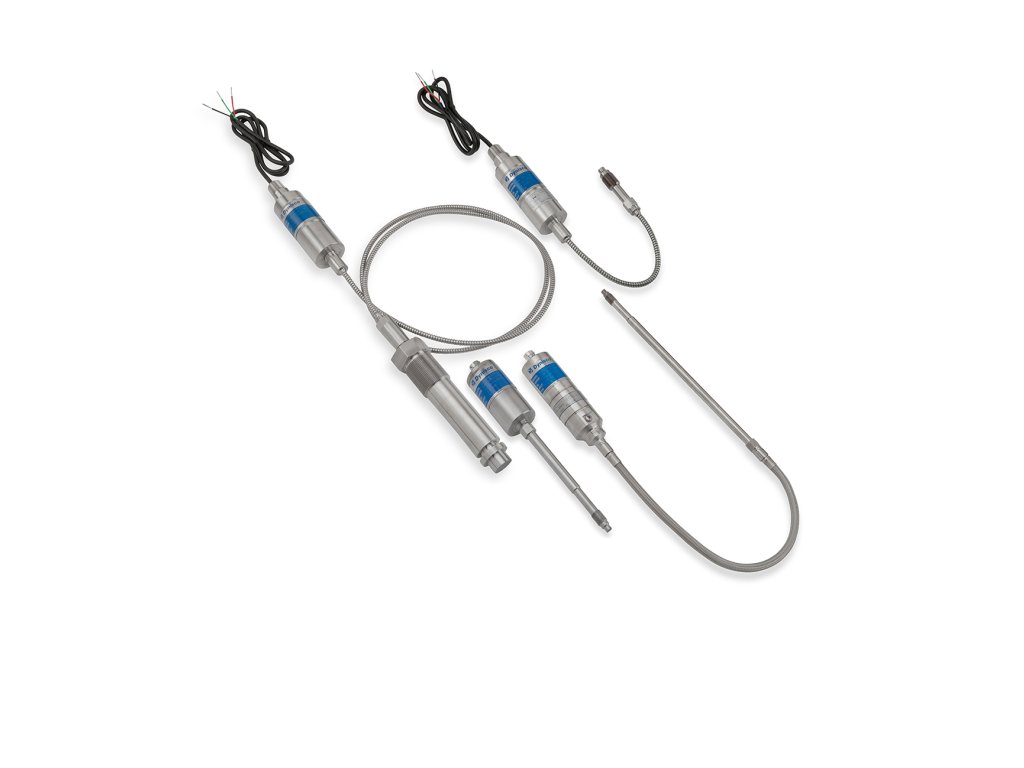

2242NP05B13FEAACACZZJ10 (order code 224200003239) – melt pressure sensor by Dynisco, SPX series. Main parameters: process connection M18x1.5, pressure range 17.5 Bar, rigid stem length 32 cm, engineering units Bar, diaphragm Inconel.
The Dynisco SPX 2-Series is an intelligent 4-20mA pressure transmitter designed for use in hazardous (explosive) areas and available with a variety of process and electrical connections. SPX 2 series transmitters are of all-welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can be connected directly to distributed control systems, PLCs, computers and similar high-level control equipment. Configurations with thermocouples or RTDs are optionally available for melt temperature measurement.
All sensors in this series can be configured to your needs. Contact us and we will be glad to help.
We will send you the price, delivery time and any available variants in our quotation.
Need help choosing? Call us on +420 571 647 228 or write to info@azurr-tech.cz.
Parameters
| Process connection | M18x1.5 |
|---|---|
| Pressure range | 17.5 Bar |
| Rigid stem length | 32 cm |
| Flexible capillary length | No flexible capillary |
| Integrated temperature sensor | No temperature sensor |
| Engineering units | Bar |
| Diaphragm | Inconel |
Description
Intelligent pressure transducers for general-purpose use in hazardous areas
A range of different process and electrical connections is available. The SPX 2 series is of all-welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can be connected directly to distributed control systems, PLCs, computers and similar high-level control equipment. Configurations with thermocouples or RTDs are optionally available for melt temperature measurement.
The SPX 2 series includes models 2241, 2242, 2243, 2244, 2290, 2291 and 2292.
SPX2242 Series
The Dynisco SPX 2-Series is a smart pressure transducer with a 4-20mA output signal.
They are designed for use in hazardous areas and are available with a variety of process and electrical connections. The SPX 2 series is of all-welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can be connected directly to distributed control systems, PLCs, computers and similar high-level control equipment. Configurations with thermocouples or RTDs are optionally available for melt temperature measurement.
