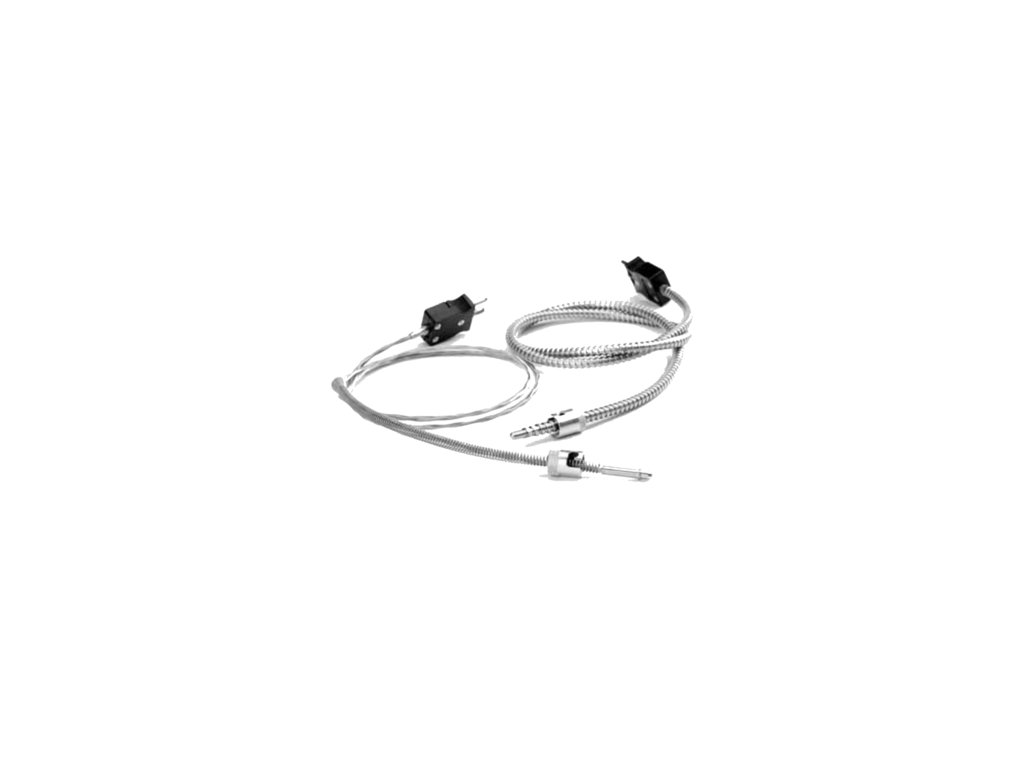

TI422JS-120-1 (order code 901159) – temperature sensor by Dynisco, 422 (TB, TG, TI) series. Main parameters: process connection 1/2-20UNF.
The TI422J is an alternative thermocouple that allows the immersion length to be adjusted simply and quickly to suit any application. The thermocouple can be specified either with a bayonet cap on a 20 cm spring, which allows up to 17 cm of adjustable immersion, or with a bayonet lock on flexible armour, which allows the full immersion length "B". Dynisco temperature thermocouples are designed and manufactured to applicable ISA standards, with accuracy traceable to the National Institute of Standards and Technology (NIST)
We will send you the price, delivery time and any available variants in our quotation.
Need help choosing? Call us on +420 571 647 228 or write to info@azurr-tech.cz.
| Process connection | 1/2-20UNF |
|---|
Adjustable thermocouples
The TI422J is an alternative thermocouple that allows the contact length to be adjusted simply and quickly for any application. The thermocouple can be specified either with a bayonet cap on an 8" spring, which allows the contact to be adjusted up to 7", or with a bayonet cap on a flexible protective sheath, which allows the contact to be adjusted over the full length "B". Dynisco temperature thermocouples are designed and manufactured to applicable ISA standards, with accuracy traceable to the National Institute of Standards and Technology (NIST).
All versions in the 422 series (TB, TG, TI) category (40 items)
