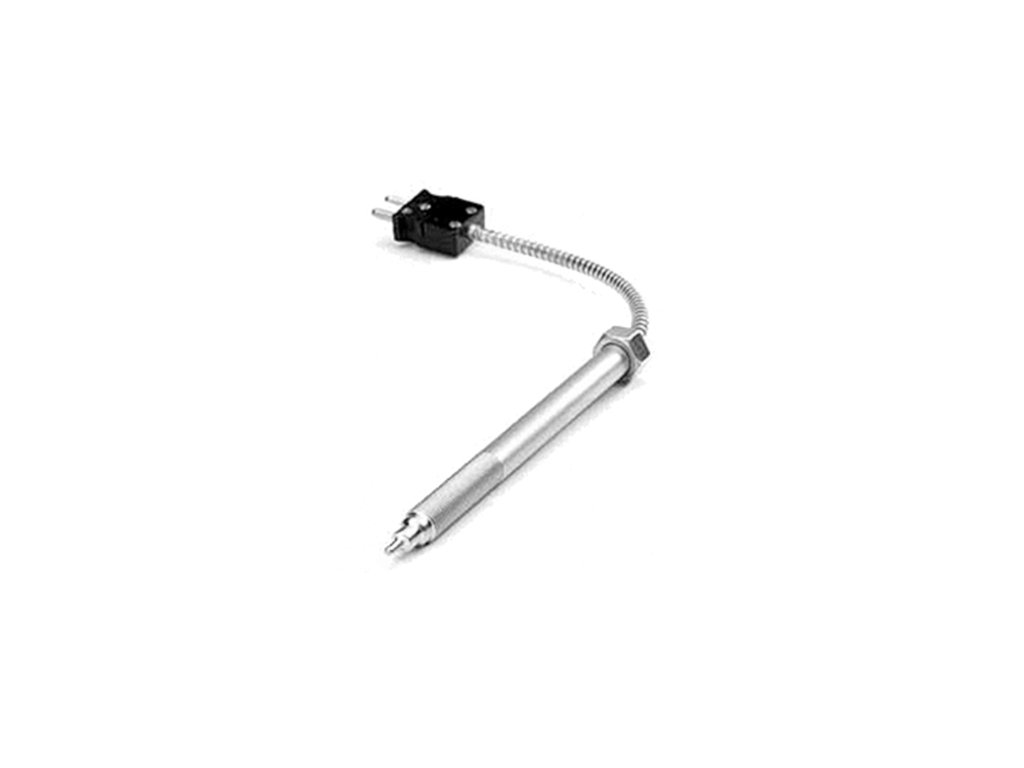

TB422RTD1-6/18-0-0-1 (order code 901365) – temperature sensor by Dynisco, 422 (TB, TG, TI) series. Main parameters: process connection 1/2-20UNF, transducer connector Standard type J thermocouple plug connector, male, rigid stem length 152.4 mm, flexible capillary length 457.2 mm, tip length Recessed.
The temperature sensor is designed to minimize friction between the melt and the sensor body. The temperature sensor can withstand high pressures of up to 1000 bar and can be ordered as a type J or K version. You can also choose between two types of sensor tip (flat or conical).
We will send you the price, delivery time and any available variants in our quotation.
Need help choosing? Call us on +420 571 647 228 or write to info@azurr-tech.cz.
| Process connection | 1/2-20UNF |
|---|---|
| Transducer connector | Standard type J thermocouple plug connector, male |
| Rigid stem length | 152.4 mm |
| Flexible capillary length | 457.2 mm |
| Tip length | Recessed |
| Tip diameter | Recessed |
Dynisco's TB422J melt temperature thermocouple is used to measure the temperature of the plastic melt in the extruder barrel. The rugged stainless steel probe is made with glass-fibre insulated material and is interchangeable with Dynisco pressure transducers, which makes installation easier. Dynisco melt temperature thermocouples are designed and manufactured to applicable ISA standards, with accuracy traceable to the National Institute of Standards and Technology (NIST).
All versions in the 422 series (TB, TG, TI) category (40 items)
