GRMT-4592-03-U1

Manufacturer: Dynisco
Order code: 903038
Category: GRMT series

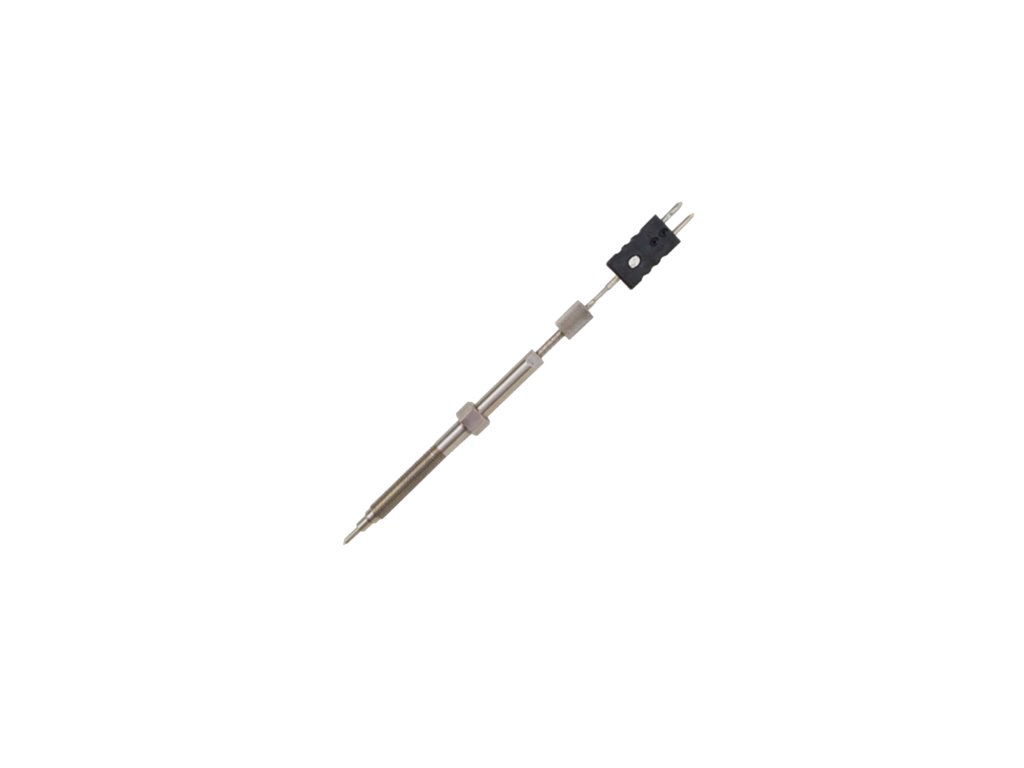

GRMT-4592-03-U1 (order code 903038) – temperature sensor by Dynisco, GRMT series. Main parameters: process connection 1/2-20UNF, bolt length 76.2 mm, coating STD, element style 2 WIRE RTD, immersion depth Flush 1".

A retractable thermocouple (GRMT) is used to measure temperature inside a polymer melt stream at different sensing depths. The temperature sensing position can be varied from the barrel wall to the centre of the barrel under standard flow and pressure conditions without removing the sensor from the adapter. The graduated design of the temperature sensor sheath allows the user to select and monitor the depth at which the sensor is currently located.

We will send you the price, delivery time and any available variants in our quotation.

Need help choosing? Call us on +420 571 647 228 or write to info@azurr-tech.cz.

Parameters

Process connection	1/2-20UNF
Bolt length	76.2 mm
Coating	STD
Element style	2 WIRE RTD
Immersion depth	Flush 1"
Probe outside diameter	1/8"

Description

Reliable and safe temperature measurement system

GRMT series melt temperature sensor

The graduated retractable melt thermocouple (GRMT) is used to measure temperatures inside a polymer melt stream. The immersion depth in the hot melt stream can be varied from zero to the middle of the stream at maximum flow and pressure without having to remove the sensor from the adapter. Using the scales on the stem of the temperature sensor, the user can select and monitor the specific depth at which the sensor is located in the melt stream.
