DYMT-S-M18-PT100/4-30-40 G-M24

Manufacturer: Dynisco
Order code: 99881337
Category: DYMT series

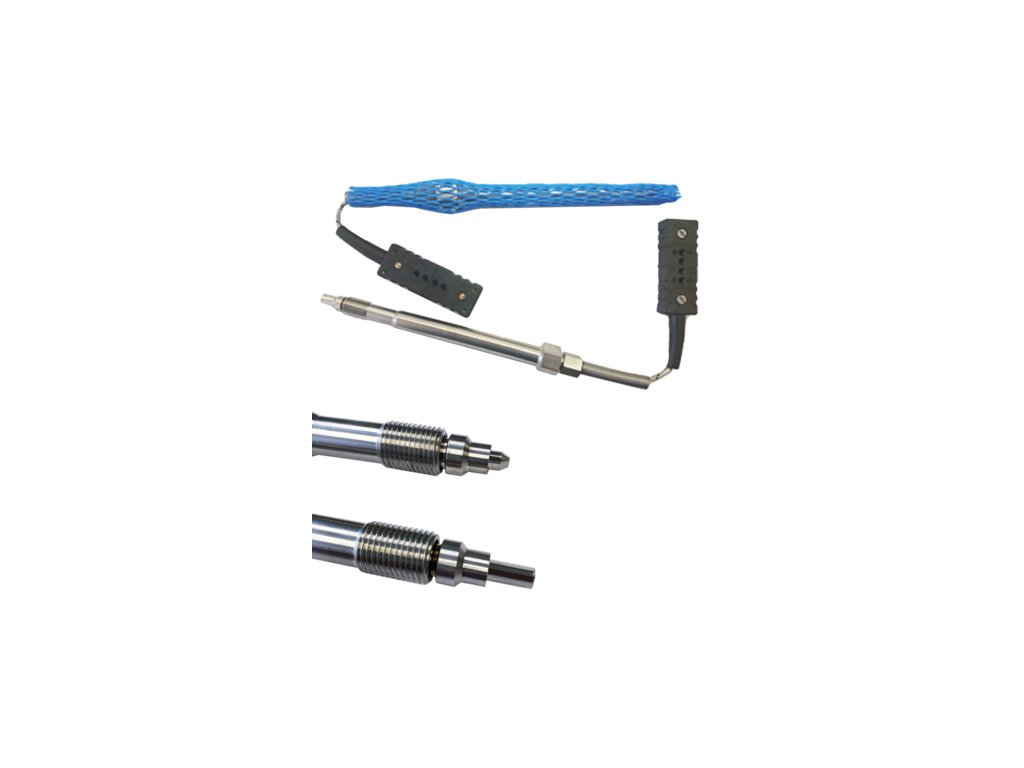

DYMT-S-M18-PT100/4-30-40 G-M24 (order code 99881337) – temperature sensor by Dynisco, DYMT series. Main parameters: process connection M18x1.5, rigid stem length 40 cm, tip length 30 cm, sensor type Straight, temperature sensor 4-wire RTD.

The DYMT series comprises temperature sensors specially designed to meet the requirements of the polymer industry. The mounting thread is compatible with the installation holes of pressure transducers, so they are ready for use in most extrusion and injection moulding processes. DYMT series temperature sensors are available with an optional tip design. Thanks to the unique design of the elliptical tip, we are able to reduce the friction of the polymer melt against the sensor and thereby reduce or completely prevent the generation of dissipative heat that can occur in this process.

The DYMT thermocouple series is also available with a dual thermocouple or RTD.

We will send you the price, delivery time and any available variants in our quotation.

Need help choosing? Call us on +420 571 647 228 or write to info@azurr-tech.cz.

Parameters

Process connection	M18x1.5
Rigid stem length	40 cm
Tip length	30 cm
Sensor type	Straight
Temperature sensor	4-wire RTD

Description

Reliable and safe temperature measurement system

DYMT series melt temperature sensor

DYMT series melt thermocouples are specially designed to meet the requirements of the polymer industry. The flexible design of this series allows use in both extrusion and injection moulding processes. The mounting thread is compatible with the threads used for melt pressure measurement. The DYMT series is therefore ready for use in most extrusion systems. Blade-style thermocouples have a unique blade design that reduces friction in the melt stream; a special rotating blade design allows low-friction installation. DYMT series melt thermocouples are also available with a dual TC or RTD.
